UNDERSTANDING ELECTROCARDIOGRAPHY BASICS
Electrocardiography (ECG or EKG) is a medical diagnostic procedure that measures and records the electrical activity of the heart. It is a non-invasive and painless test that provides valuable information about the heart’s rhythm and electrical conduction.
During an ECG, small metal electrodes are placed on specific locations on a person’s chest, arms, and legs. These electrodes detect the electrical signals generated by the heart’s activity. The electrodes are connected to an ECG machine that records and displays the electrical patterns as a series of waves on a graph.
The ECG graph consists of several characteristic waves and intervals that represent different phases of the heart’s electrical cycle. The primary waves seen on an ECG are:
- P-wave: Represents the electrical activity of the atria (upper chambers) as they contract.
- QRS complex: Represents the electrical activity of the ventricles (lower chambers) as they contract. It consists of the Q, R, and S waves.
- T-wave: Represents the electrical recovery phase of the ventricles as they prepare for the next contraction.
By analyzing the various waves, intervals, and segments of an ECG, healthcare professionals can gather important information about the heart’s function, including:
- Heart rate: The ECG can measure the heart’s beats per minute (BPM) by analyzing the R-R intervals between consecutive R waves.
- Rhythm abnormalities: Irregularities in the timing and regularity of the waves can indicate various conditions such as atrial fibrillation, atrial flutter, or ventricular tachycardia.
- Conduction abnormalities: ECG can detect abnormalities in the electrical conduction system of the heart, such as a blockage in the atrioventricular (AV) node or bundle branches.
- Myocardial ischemia: Changes in the ST segment or the appearance of abnormal Q waves may suggest reduced blood flow to the heart muscle, indicating myocardial ischemia or a heart attack.
ECG is a commonly used tool in cardiology and is often performed as part of routine physical examinations, as well as in emergency situations to evaluate chest pain, palpitations, or other symptoms related to heart problems.
It’s important to note that while an ECG provides valuable information about the heart’s electrical activity, it is just one tool in the diagnostic process. Additional tests, such as echocardiography, stress tests, or blood tests, may be required to obtain a comprehensive assessment of heart health. Only a qualified healthcare professional can interpret an ECG and make an accurate diagnosis based on the findings.
ECG Electrode Placement Guide
Proper placement of electrocardiogram (ECG) electrodes is crucial to obtain accurate and reliable results. The electrodes are placed on specific locations on the body to measure the electrical activity of the heart. Here is a general guide for the correct placement of ECG electrodes:
- Prepare the patient: Ensure the patient’s chest and limbs are clean and dry. Remove any excess hair if necessary, as it can interfere with electrode adhesion.
- Obtain the electrodes: ECG electrodes typically come in a set of 10, with six limb electrodes and four precordial (chest) electrodes. Limb electrodes are usually labeled as RA (right arm), LA (left arm), RL (right leg), and LL (left leg). Precordial electrodes are labeled as V1, V2, V3, V4, V5, and V6.

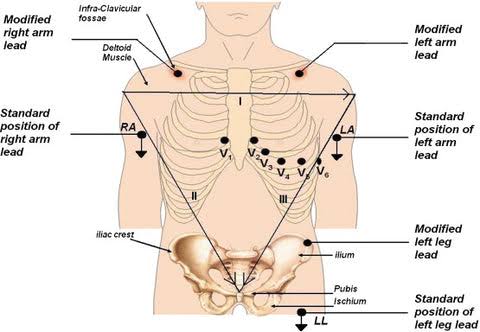

- Limb electrode placement:
- RA electrode: Place on the patient’s right arm, just below the shoulder joint.
- LA electrode: Place on the patient’s left arm, just below the shoulder joint.
- RL electrode: Place on the patient’s right leg, above the ankle bone.
- LL electrode: Place on the patient’s left leg, above the ankle bone.

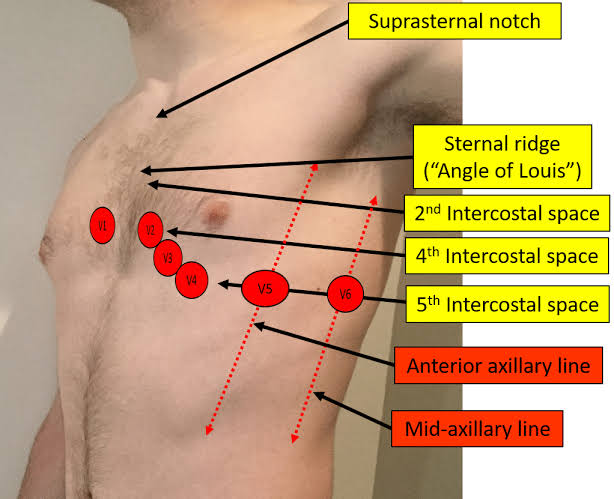

- Precordial electrode placement:
- V1 electrode: Place on the fourth intercostal space, right sternal border (to the right of the sternum).
- V2 electrode: Place on the fourth intercostal space, left sternal border (to the left of the sternum).
- V3 electrode: Place between V2 and V4.
- V4 electrode: Place in the fifth intercostal space, midclavicular line (between the V2 and V6 positions).
- V5 electrode: Place on the fifth intercostal space, anterior axillary line (horizontal to V4).
- V6 electrode: Place on the fifth intercostal space, midaxillary line (horizontal to V4 and V5).
- Ensure proper skin contact: Press each electrode firmly onto the skin to ensure good contact. Ensure that the electrode pads are securely attached and do not move during the ECG recording.
- Verify electrode placement: Double-check the positions of all the electrodes to ensure they are correctly placed. Confirm that the limb electrodes are on the correct limbs and that the precordial electrodes are in the appropriate chest locations.
- Start the ECG recording: Connect the leads from the electrodes to the ECG machine or monitor and initiate the ECG recording.
It’s important to note that this is a general guide, and specific variations in electrode placement may exist based on the ECG system used or the preferences of the healthcare professional. Always refer to the manufacturer’s instructions or follow the guidelines provided by your healthcare provider for precise electrode placement.
Standardization, voltage, speed and time of ECG paper
Understanding the basics of ECG involves knowing about standardization, voltage, and the speed and time of ECG paper. Let’s explore each of these aspects:
- Standardization: Standardization is an important process in ECG that ensures accurate interpretation of the recorded electrical signals. It involves calibrating the ECG machine to produce a known voltage at a specific time. The standardization signal typically appears as a vertical line or spike on the ECG graph. By comparing the recorded voltage of this signal with the expected value, healthcare professionals can determine if the ECG machine is accurately measuring and displaying the electrical activity of the heart.
- Voltage: The voltage refers to the amplitude or height of the electrical signals recorded on an ECG. The ECG paper consists of a grid of squares, with each small square measuring 1 millimeter (mm) in height and 1 mm in width. The voltage is measured in millivolts (mV) and is represented on the vertical axis of the ECG paper. In standard ECG recordings, the vertical axis typically ranges from -10 mV to +10 mV, and the height of the ECG waves or complexes represents the electrical activity of the heart during different phases of the cardiac cycle.
- Speed and Time of ECG Paper: The ECG paper moves at a constant speed, which is standardized at 25 mm per second (mm/s) in most ECG machines. The horizontal axis of the ECG paper represents time, with each small square measuring 0.04 seconds (s). Larger squares, consisting of five small squares, represent 0.2 seconds (s). The ECG paper is typically marked with vertical lines that indicate specific time intervals, such as 3 seconds, 6 seconds, or 10 seconds. These time markings are useful for measuring the duration of various ECG intervals, such as the PR interval, QRS complex, and QT interval, which provide information about the timing and duration of different phases of the cardiac cycle.
By understanding the standardization process, voltage measurement, and the speed and time of the ECG paper, healthcare professionals can accurately interpret the electrical signals recorded during an ECG test and make informed assessments about a patient’s cardiac health.
Normal ECG Potentials & Axis
Here’s a brief explanation of the normal direction of ECG potentials, the position of leads, and the concept of the cardiac axis.
Direction of Normal ECG Potentials: The electrical activity of the heart can be represented by a vector, which indicates both the magnitude and direction of the electrical signals. In a normal heart, the depolarization wave (spread of electrical activity) travels in a specific direction through the heart, resulting in characteristic ECG waveforms.
The normal direction of ECG potentials is as follows:
- P wave: The P wave represents atrial depolarization (contraction) and normally has an upward deflection (positive) in lead II, lead III, and aVF. In lead I, it is usually upright or slightly negative.
- QRS complex: The QRS complex represents ventricular depolarization (contraction). In lead II, lead III, and aVF, the QRS complex is typically upright (positive), while in lead aVR, it is generally downward (negative). In lead I, it can be either upright or slightly negative.
- T wave: The T wave represents ventricular repolarization (recovery). In most leads, the T wave is generally upright (positive). However, in lead aVR, it is typically inverted (negative).
Position of Leads: An ECG is recorded by placing electrodes (leads) on specific positions on the body. These leads are used to measure the electrical activity of the heart from different angles.
The standard ECG uses 12 leads, which are divided into three groups:
1) Limb Leads:
aVR: Right arm (negative electrode)
aVL: Left arm (positive electrode)
aVF: Left leg (positive electrode)
2) Chest (Precordial) Leads:
V1: Fourth intercostal space, right sternal border
V2: Fourth intercostal space, left sternal border
V3: Midway between V2 and V4
V4: Fifth intercostal space, mid-clavicular line
V5: Fifth intercostal space, anterior axillary line
V6: Fifth intercostal space, mid-axillary line
3) Augmented Unipolar Limb Leads:
aVR: Right arm (positive electrode)
aVL: Left arm (positive electrode)
aVF: Left leg (positive electrode)
Cardiac Axis: The cardiac axis refers to the overall direction of electrical activity during ventricular depolarization (QRS complex). It is commonly assessed using leads I and aVF. Normally, the QRS axis is between -30° and +90°.
Interpreting the cardiac axis helps evaluate the electrical conduction through the heart and identify any abnormalities. For example, a left axis deviation (axis < -30°) or right axis deviation (axis > +90°) may indicate certain heart conditions.
Please note that this is a simplified explanation, and the interpretation of an ECG requires clinical expertise. If you have specific concerns or questions about your own ECG, it is best to consult a medical professional or cardiologist for accurate analysis and interpretation.
Differentiating ECG Abnormalities
Differentiating simple ECG abnormalities, such as left bundle branch block (LBBB), right bundle branch block (RBBB), and chamber hypertrophies, can be challenging but crucial in interpreting electrocardiograms (ECGs) accurately. Here’s an overview of these abnormalities and some key features that can help differentiate them:
- Left Bundle Branch Block (LBBB): LBBB is characterized by delayed or blocked conduction in the left bundle branch, resulting in a widening of the QRS complex on the ECG. Key features of LBBB include:
- QRS duration ≥ 120 ms (3 small boxes) in adults
- Broad monophasic R waves in leads I, aVL, V5, and V6
- Broad monophasic S waves in leads III and aVR
- Absent or small Q waves in lateral leads (I, aVL, V5, and V6)
- “M-shaped” QRS complexes in leads V1 and V2 (broad R wave followed by a deep S wave)
- Right Bundle Branch Block (RBBB): RBBB occurs when there is delayed or blocked conduction in the right bundle branch, resulting in a characteristic pattern on the ECG. Key features of RBBB include:
- QRS duration ≥ 120 ms (3 small boxes) in adults
- Wide, slurred S waves in leads I, V5, and V6
- Wide, notched R waves in leads V1 and V2 (resembling “rabbit ears”)
- Normal or small Q waves in leads III and aVF
- Chamber Hypertrophy: Chamber hypertrophy refers to the enlargement of cardiac chambers, which can be due to various conditions such as hypertension, valvular disease, or cardiomyopathy. ECG findings suggestive of chamber hypertrophy differ depending on the affected chamber:
- Left Ventricular Hypertrophy (LVH):
- Increased R wave amplitude in leads I, aVL, V5, and V6
- Deep S waves in leads III and aVF
- Left axis deviation (QRS axis > 0°)
- ST-T wave changes (e.g., ST depression, T wave inversion) in lateral leads
- Right Ventricular Hypertrophy (RVH):
- Increased R wave amplitude in leads V1 and V2
- Right axis deviation (QRS axis > 90°)
- Right atrial enlargement (P-pulmonale) with tall P waves in leads II, III, and aVF
It’s important to note that these ECG abnormalities can coexist or occur in combination with other cardiac conditions. Additionally, clinical correlation and further diagnostic tests may be necessary to confirm the presence and underlying cause of these abnormalities.
